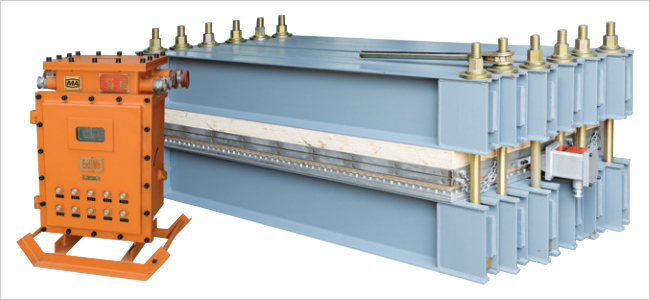

LBD-type mining anti-explosive vulcanizer
Basic parameters
SN Name Unit Model of the Vulcanizer
LBD-800×830 LBD-1000×830 LBD-1200×830 LBD-1400×830 LBD-1600×830 LBD-1800×830
1 Width of the Vulcanization
adhesive tape		 mm 800 1000 1200 1400 1600 1800
2 Set temperature ℃ 145
3 Warm-up time min ≤50
4 Pressurizing device
for pressure		 Mpa 1.0-2.0
5 Voltage V 660
6 Gross power kw 11.8 13.8 16.8 19.5 21.4 23.94
7 Electric
heating
plate		 Effective operating
surface size(L*W)		 mm 945×830 1108×830 1350×830 1597×830 1720×830 1924×830
Maximum power kw 5.9 6.9 8.4 9.75 10.7 11.97
Line current A 5.2 6.1 7.4 8.55 9.39 10.5
Weight kg 80 90 110 120 140 160
8 Frame Appearance size
(L*W*H)		 mm 1250×102×200 1450×102×200 1650×118×250 1950×118×250 2100×122×280 2300×132×320
Weight kg 45 52 75 88 110 148
9 Pressure plate Appearance size
(L*W*H)		 mm 945×830 1108×830 1350×830 1597×830 1720×830 1924×830
Weight kg 50 65 70 85 95 105
10 Upper thermal baffle mm 945×830 1108×830 1350×830 1597×830 1720×830 1924×830
11 Lower thermal baffle mm 865×780 1028×780 1270×780 1517×780 1640×780 1844×780
12 Host Appearance size
(L*W*H)		 mm 1500×830×680 1700×830×680 1900×830×780 2200×830×780 2350×830×850 2550×830×920
Gross weight kg 825 1050 1250 1550 2000 2250
